Kit Sound Upgrade

per Mercedes CLA

serie W117

con sistema sound base in origine

Coppia altoparlanti – anteriori e posteriori

Set di altoparlanti a 2 vie 6½” / 16,5 cm

SISTEMA DI DIFFUSORI A 2 VIE

GLADEN RS-165 SPEED-G2 – Sistema di diffusori da 165 mm – 2 x 140 / 100 Watt – Impedenza 3 Ohm – Tweeter da 25 mm – Crossover

Efficiente sistema di diffusori a 2 vie con crossover passivo salvaspazio. Il Gladen RS-165 Speed-G2, con la sua elevata efficienza, è un partner ottimale per piccoli amplificatori o per le classiche autoradio.

Per installare il tweeter nelle posizioni di montaggio originali, l’alloggiamento in plastica può essere smontato. Per un allineamento ottimale del tweeter, è possibile utilizzare i Gladen POD opzionali.

Woofer:

Dimensioni: 165 mm
Cono in tessuto
Cestello in acciaio
Spider centrale in Nomex
Bobina mobile da 25 mm
Protezione del magnete in gomma
Impedenza 3 Ohm

Tweeter:
Dimensioni: 25 mm (bobina mobile)
Diaframma in tessuto di seta
Griglia esagonale
Impedenza 4 Ohm
Accessori opzionali: POD Gladen

Crossover:
Crossover in guaina termoretraibile
Regolazione del tweeter
Protezione tweeter PTC

+

Supporti adattatori

+

cavi collegamento

+

Name: Kit Gladen/Mosconi Sound Upgrade per Mercedes CLA serie W117
SKU: Gladen kit w117
Availability: InStock

Mosconi Pico V2 8|10 DSP

With the PICO V2 8|10 DSP, MOSCONI is launching the second generation of PICO DSP amplifiers on the car hi-fi market. In addition to improved connectivity, the new PICO scores with increased sound performance and better efficiency.
All connections are now located on one side and all relevant setting switches required for operation in modern vehicles are located under a magnetic housing cover.
Furthermore, all inputs are now high- and low-level capable. All desired DSP settings can now be made via a USB-C connection.

Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Eight analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 50 Watts + 4 x 80 Watts ideal for active and semi-active systems, as well as classic front + rear + sub application. With two digital inputs (SP-Dif and BT+) and two processed line outs ready for the future.

Transducerless high-speed PWM power amplifiers:

High-efficiency PWM output stages with the fastest carrier frequency in the world today (> 2 MHz). The modulation is done without DAC directly from the 48 kHz TDM signal of the DSP, thus the noise floor goes to zero and THD+N ~ 0.02 % / 1 W.

Input:

8 x analog inputs switchable (high level / low level) Class SB compatible, 2-30V
1 x digital input SP-Dif optical (8 kHz – 96 kHz sampling rate)
1 x digital input coax digital (8 kHz – 96 kHz sampling rate)
1 x bt port with SP-Dif – TTL (8 kHz – 96 kHz, e.g. for Mos_BTS bt streaming module)
bt extended digital audio port (BT+)
(flexible 8 kHz – 384 kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

DSP:

912 MHz, 32-bit audio port, 64-bit core
Double precision 56 Bit filter calculation
Samplerate 96kHz

CONTROL:

1 x remote connector (analog, for RTC.2 roti remote control)
1 x BT+ control port (connection MOS-BT3.0 (app control), RC-Can (CAN bus control), MOS_USB2.0 (programming dongle), BTS-LD4C Highres Streaming Module, Gladiator Controller
1 x remote out, 1 x remote in, auto remote for high level connection
Connections with MOLEX® plug contacts
Very small size with low heat generation, best suited for installation behind panels

SOFTWARE:

3 x 9 band parametric input EQ (de-equalizing)
6 x input delay 0 – 3 ms / 0.01 ms (de-delay)
10 x input level control digital (signal conditioning)
Flexible mixer for signal routing
(Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
(parametric, relative phase remains stable)
8 x 10 band output filters
Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
8 x speaker-delay 0 – 12 ms, 0,02 ms
8 x speaker phase switch
Flexible phase control with calculation tool
Extensive integrated analysis tools
B.A.R.N.I.E. compatible

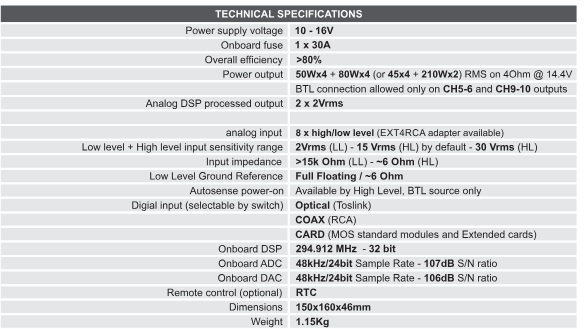

Technical Data Mosconi Pico V2 8|10 DSP

Output power/output side:

Output power @ 4Ω:

4 x 50 Watts (channel 1 – 4) 3-Ohm stable (not bridgeable!)
Output power @ 4Ω:

4 x 80 watts (channel: 5 + 6 / 9 + 10) 2-ohm stable / bridgeable
Output power @ 4Ω:

4 x 45 watts + 2 x 210 watts (bridged channel: 5 + 6 / 9 + 10)
Line Out:

2 x 2 Vrms Line Out outputs (channel: 7 + 8)

Specifications:

Input voltage:

2Vrms (LL) – 15 Vrms (HL) by default – 30 Vrms (HL)
Overall efficiency:

> 80 %
Auto-On (only High Level):

Off – BTL
Dimensions:

150 x 160 x 46 mm
Weight:

1150 Gram

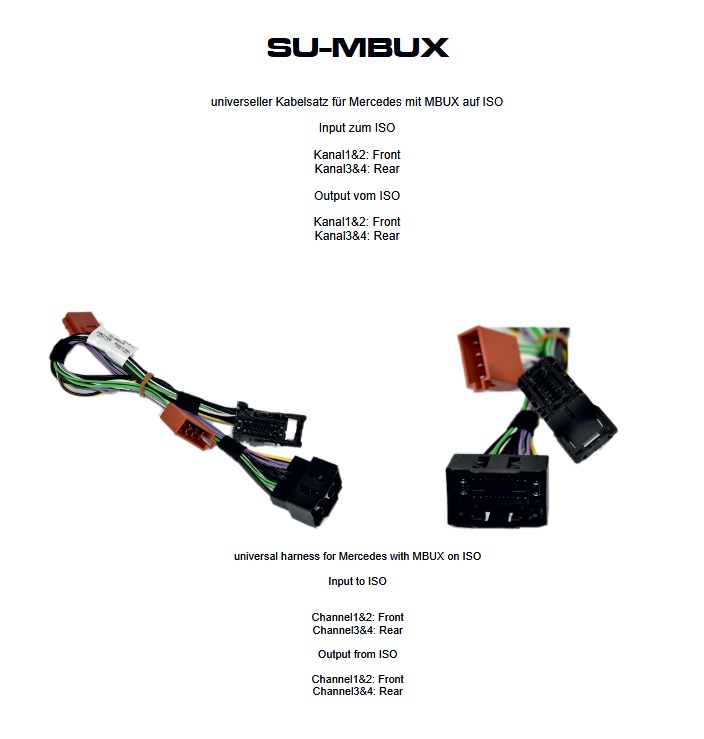

SU-MBUX

Universal harness set for Mercedes with MBUX to ISO.

Can be extended with ISO extensions.
Made in Europe

SU-ISOPICO6-8

Harness set for the installation of a PICO DSP amplifier in a vehicle with original ISO connection.

The PIN assignment is freely configurable in the enclosed Molex housing.

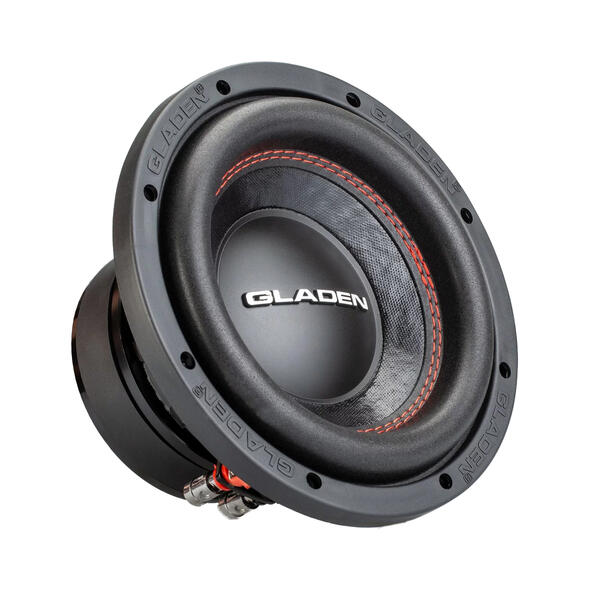

Gladen RSX08

Subwoofer 8″ / 20 cm

8″ / 20 cm
Gestione della potenza: 375 / 250 W
Impedenza di 4 Ω
Cestello in alluminio fuso
Ragno in nomex nero
Membrana in carta
Cappuccio antipolvere in PP

Materiale:

Cono: Carta
Ragno: Nomex
Circondario: Schiuma: Schiuma
Bobina precedente: Alluminio
Cestello: Alluminio
Cappuccio antipolvere: PP

Specifiche:

Resistenza DC (Rdc): 3,75 Ω
Impedenza nominale (ZN): 4 Ω
Frequenza di risonanza (fs): 43,02 Hz
Diametro della bobina mobile: 2
Fattore Q meccanico (Qms): 6,09
Fattore Q elettrico (Qes): 0,72
Fattore Q totale (Qts): 0,64
Massa in movimento (Mms): 99,39 g
Area effettiva del pistone (Sd): 216 cm²
Resistenza meccanica (Rms): 4,79 kg/s
Conformità (Cms): 0,14 mm/N
Fattore di forza (BL): 11,35 Tm
Volume d’aria equivalente (Vas): 9,02 dm³
SPL 2,83 V / 1 m: 88,1 dB

Kit cassa chiusa

subwoofer per Mercedes CLA W118 W117

Adatto per Mercedes CLA W118 W117

subwoofer 8″/20 cm,

volume 8 litri

Il kit per subwoofer è il modo ideale per migliorare i bassi in macchina.

Abbinabile al veicolo occupa poco spazio e non interferisce con il normale utilizzo dell’auto.

I parametri dei box sono scelti in modo tale da poter essere installati nei subwoofer più diffusi e contemporaneamente fornire ottimi bassi nell’auto.

Product parameters

Color	Black Melange
Speaker size	8″/20cm
Mounting hole diameter (mm)	182
Undercut diameter (mm)	222
Subwoofer depth (mm)	150
MAX magnet diameter (mm)	150
Volume closed enclosure (liters)	8
Weight (kg)	3,1

MDF 12

Marca	AHT
MPN	017

Kit Gladen/Mosconi Sound Upgrade per Mercedes CLA serie W117

Kit Sound Upgrade

per Mercedes CLA

serie W117

con sistema sound base in origine

RS 165 speed-G2
