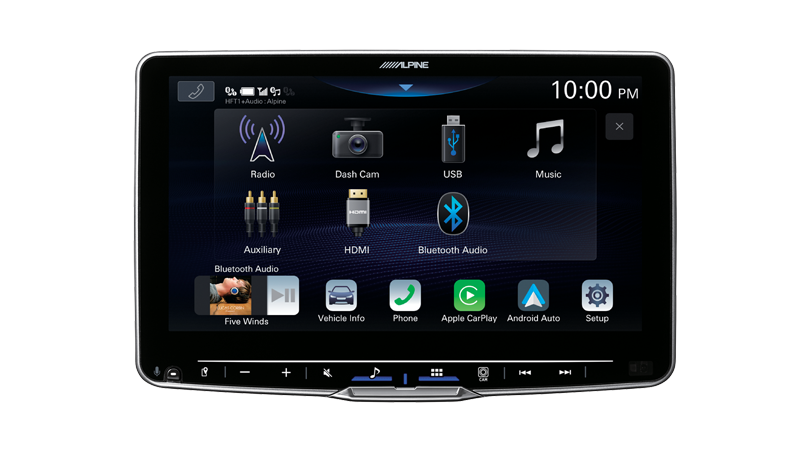

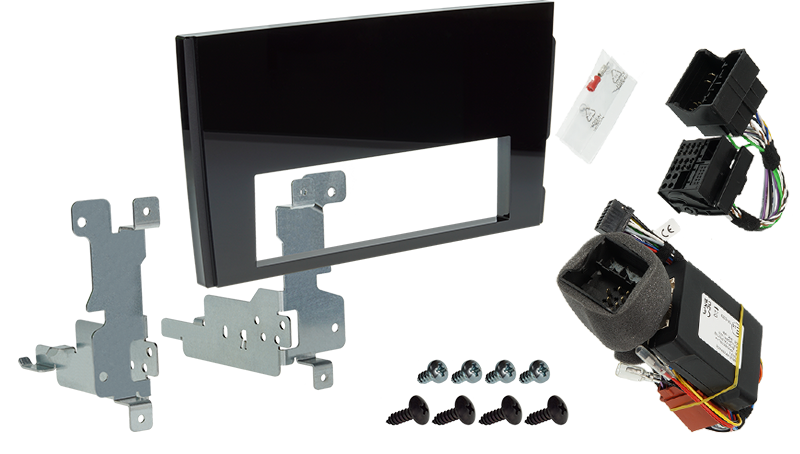

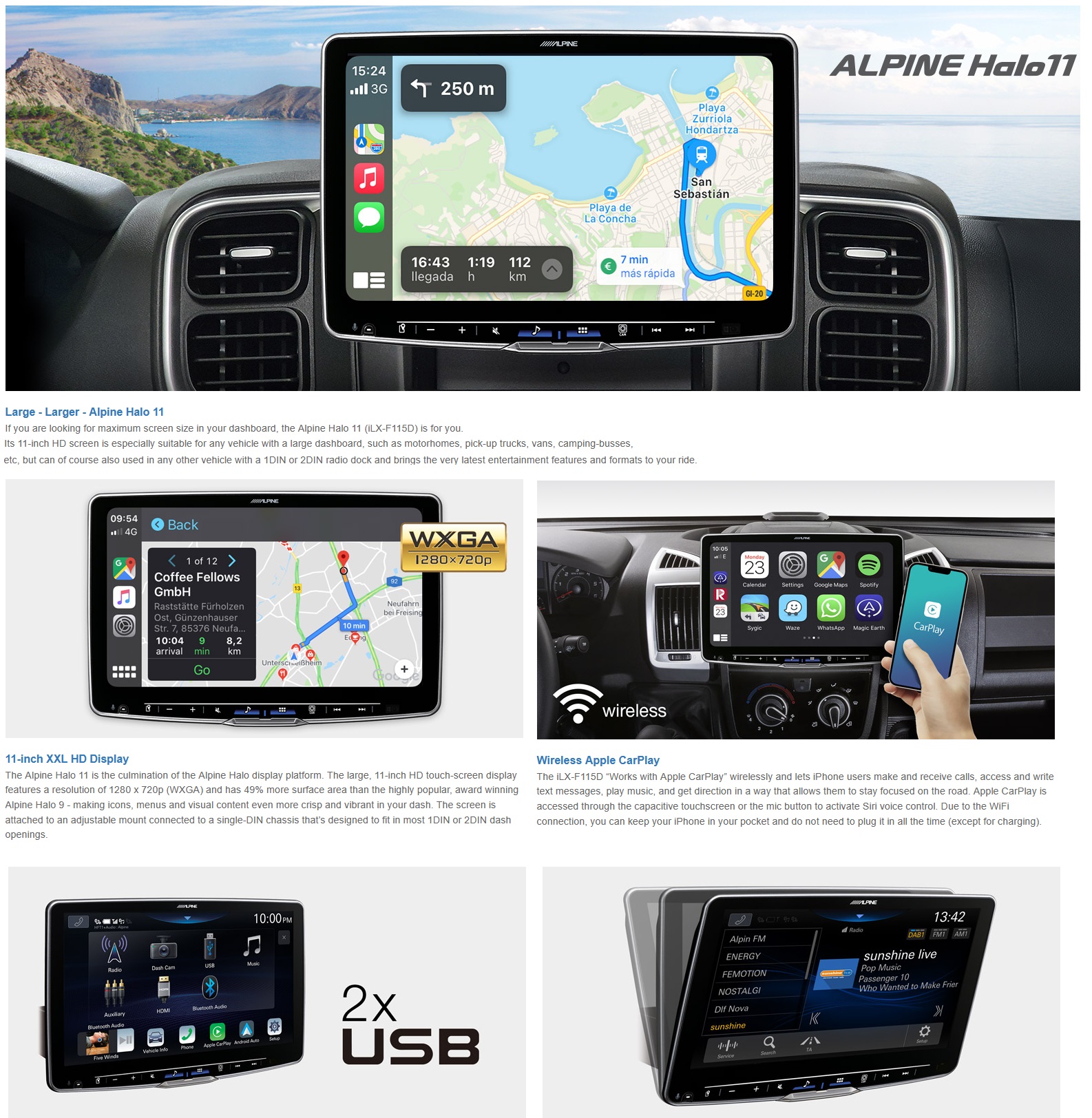

The iLX-F115T61 Alpine Halo11 for the Volkswagen T6.1 (model year 11.2019 till 2022) is the second generation of Alpine’s world-famous Halo product line, featuring an 11-inch high-resolution WXGA touch-screen and comes with all required installation parts (such as a plug-and-play wiring harness, CAN interface, frame, etc.) for the T6.1. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.

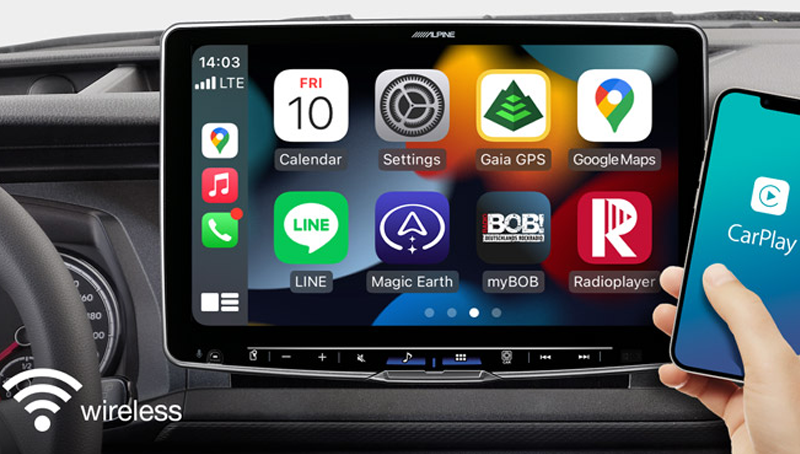

Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit. You can choose from a wide selection of online navigation apps such as Google maps and use them on your Alpine screen through Apple CarPlay and Android Auto or upgrade to offline Navigation with the optionally available Alpine Navi Stick.

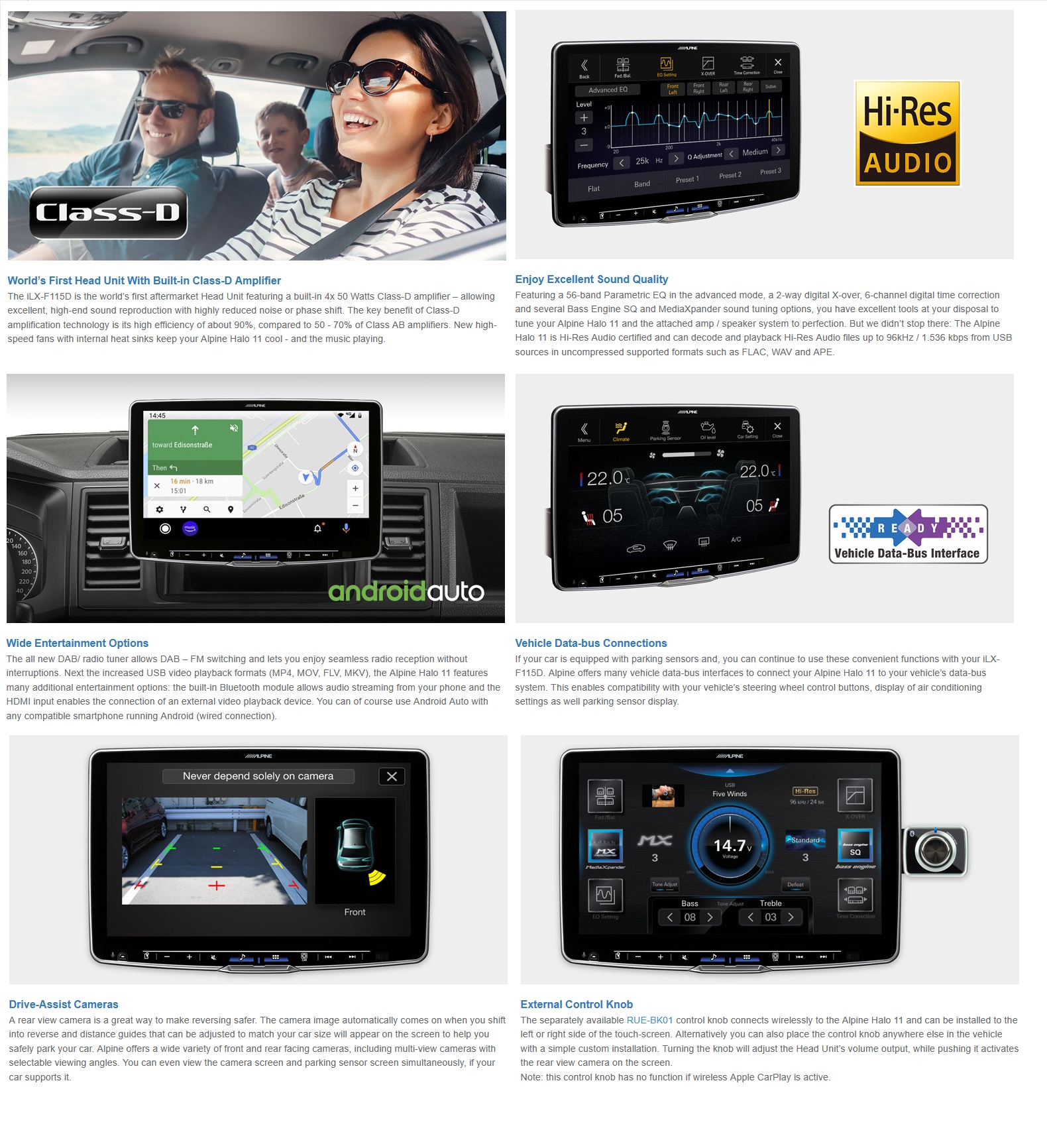

Bring exceptionally good sound quality into your vehicle: the Alpine Halo9 is the world’s first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as digital X-overs, a Parametric EQ, 6 Volt PreOuts, digital time correction and much more.
The optional Alpine Navi Stick KTX-NS01EU can be connected to the Alpine Digital Media Station via USB. It provides instant access to the motorhome navigation system including HERE real-time traffic information. The latest iGo Primo Nextgen navigation with the HERE map database and park4night parking space data guides you confidently through Europe. Further information can be found under KTX-NS01EU.
Note:
FOR VEHICLES WITH ORIGINAL eCALL: CAN bus interface to maintain the eCall function when replacing the OEM radio is needed. Please ask your dealer.
Please note that vehicle menus may be lost (e.g. traffic sign recognition etc.). A few other functions or settings are retained but may be controlled in a different way.
Radio / DAB Tuner
Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
Memory: Auto Memory
Seek Mode: Local, DX, Pre-Set, Service
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
BLUETOOTH®
Built-in BLUETOOTH® Module V4.2
HFP (Hands-Free Profile) Compatible
A2DP (Advanced Audio Distribution Profile) Compatible
AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1 kHz): 0.005%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 95 dB
GPS
GPS compatible navigation antenna included
GPS frequency: 1575.42 +/- 1.023 MHz
Reception sensitivity (search): – 136 dB max
BLUETOOTH®
BLUETOOTH® Version: Bluetooth V4.2
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

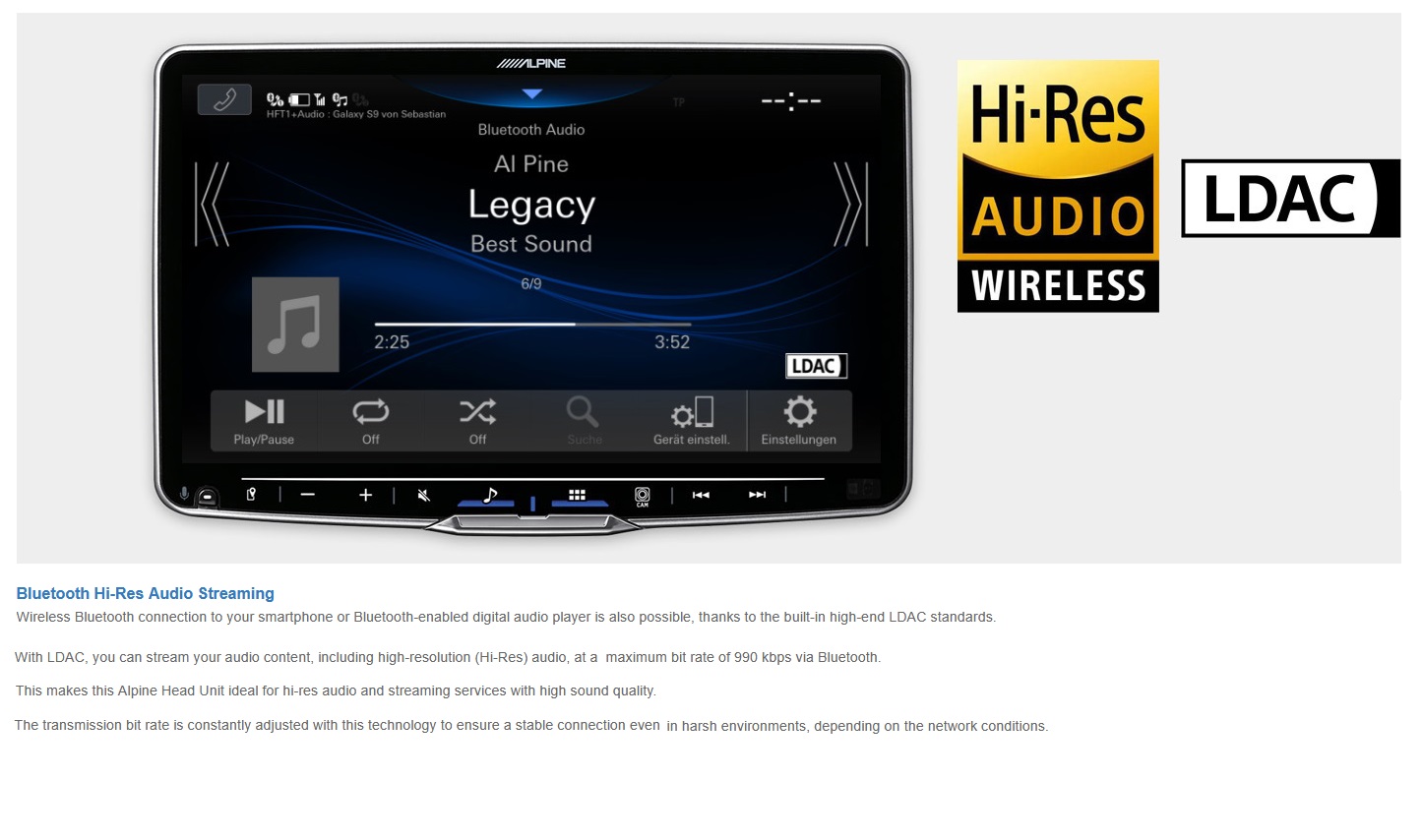

Supports LDAC Audio Codec

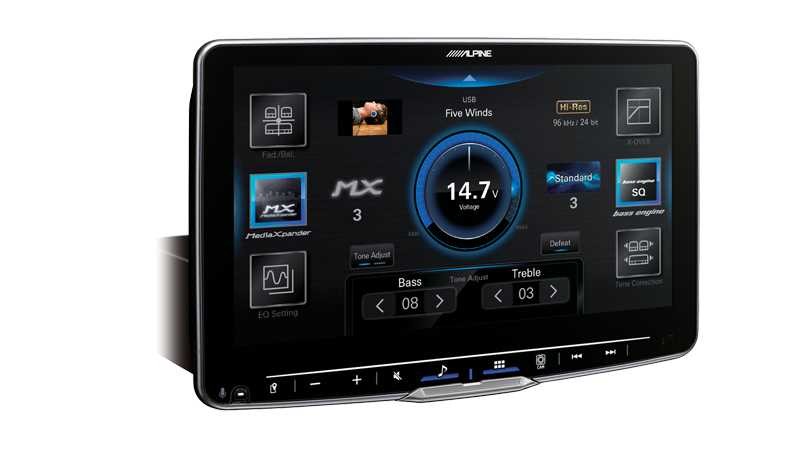

Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5 Modes, Level 0 to +6
For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
HDMI Section
Input Format 720p / 480p / VGA
General
Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 6 V / 10k ohms
Dimensions
Weight: 2,6 kg

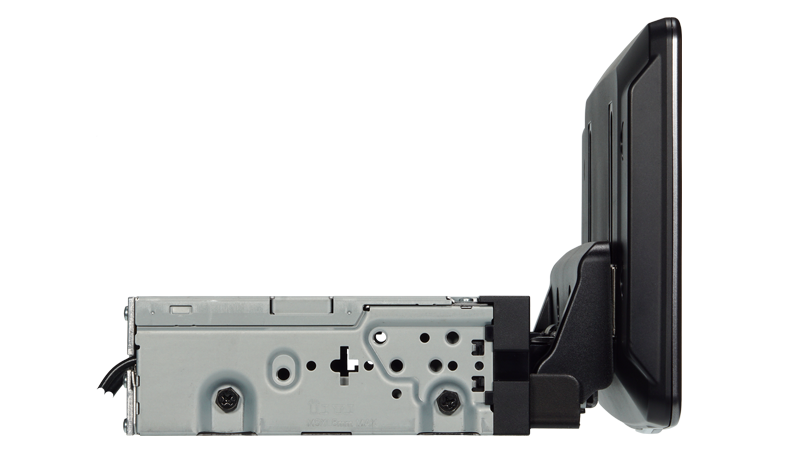

Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
Display Size (W x H x D) mm: 269 x 178 x 55 mm
Compatible Cars

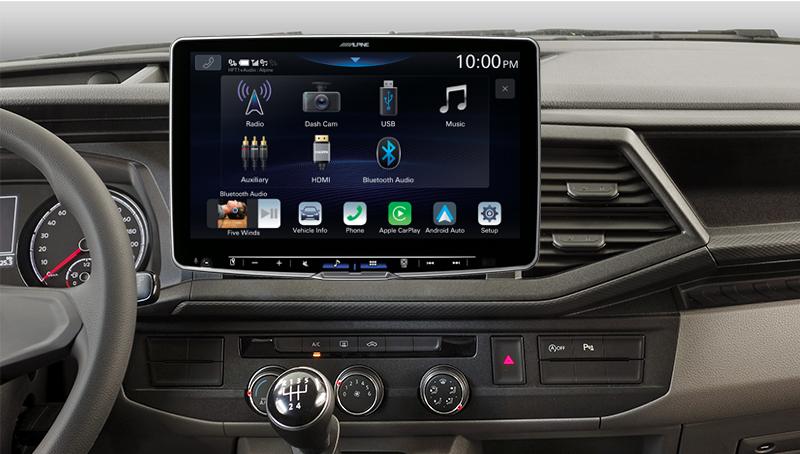

Volkswagen T6.1 (7H / 7J) 11/2019 – 2022
Note:
FOR VEHICLES WITH ORIGINAL eCALL: CAN bus interface to maintain the eCall function when replacing the OEM radio is needed. Please ask your dealer.
Please note that vehicle menus may be lost (e.g. traffic sign recognition etc.). A few other functions or settings are retained but may be controlled in a different way.
